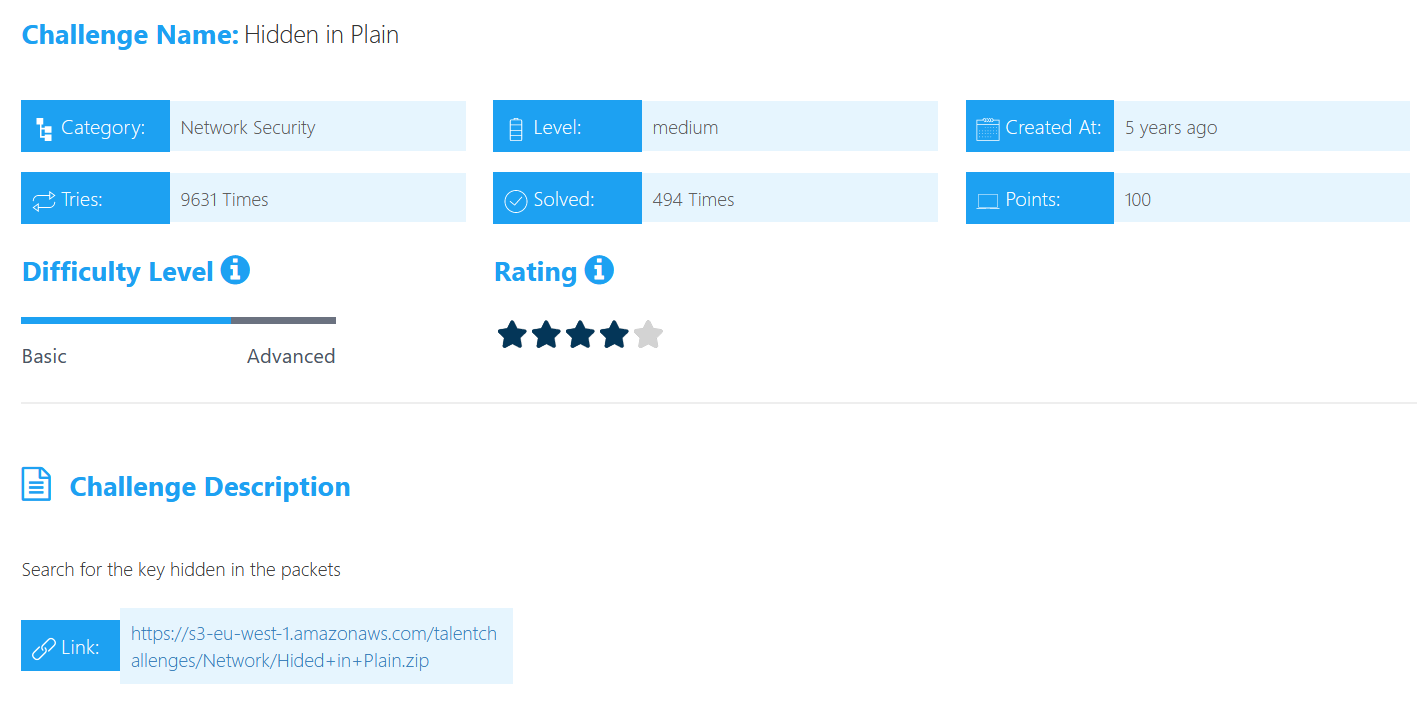

Hidden In Plain

Step 1:

After downloading the zip file and extracting it. we will find three pcap files and analysing them by using wireshark tool.

First thing, let’s check what procotols do they have via Statistics > Protocol Hierarchy

Step 2:

Now, we can proceed with our analysis. Looking at the packets and we only observe the interesting thing is about the ICMP data.

Step 3:

It’s the time to extract the icmp data from the packets using tshark or pyshark tools.

I have written a small script using pyshark to extract the icmp data.

import pyshark
import sys

# stores pcap filename
filename = sys.argv[1]

# open pcap file
file = pyshark.FileCapture(filename)

# loop over each packet
for pkt in file:

    # fetch icmp data from packet as "57:00:..."
    cap = pkt.icmp.data_data

    # insert the fetched data into a list
    data_list = cap.split(":")

    #  storing the offset bytes in one string after converting it from hex to char

    offset = ""

    for i in data_list:
        offset += chr(int(i, 0x10))

    print(offset)

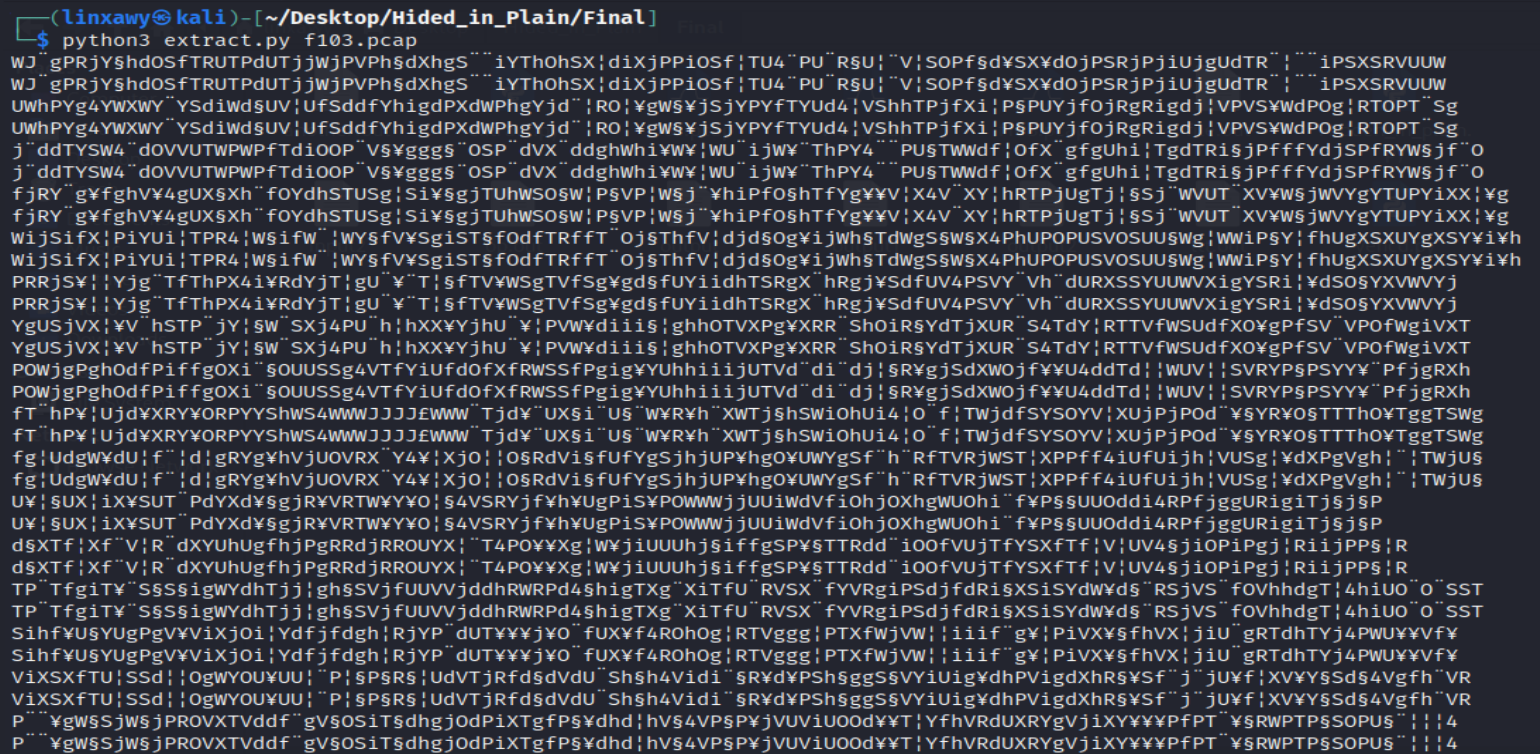

After running the script, we will see the icmp data combined with strange symbols.

Step 4:

There was nothing clear after extracting the icmp data. I stopped at this point then contacted the technical team for providing any hints for the challenge.

Hint: yEnc Encrypted and the flag format is a hash

I have searched for how it works and how to use it in python. Actually, I have found a yEnc module for python and it supports the encoding/decoding directly to files or memory buffers.

At this time, I have modified the script in order to implement the decode operation on the extracted icmp data to see what will be the results.

import pyshark
import sys
import yenc

# stores pcap filename
filename = sys.argv[1]

# open pcap file
file = pyshark.FileCapture(filename)

# loop over each packet
for pkt in file:

    # fetch icmp data from packet as "57:00:..."
    cap = pkt.icmp.data_data

    # insert the fetched data into a list
    data_list = cap.split(":")

    #  storing the offset bytes in one string after converting it from hex to char

    offset = ""

    for i in data_list:
        offset += chr(int(i, 0x10))

    # storing the encoding yenc icmp data into an input file

    inputFile = sys.argv[2]

    with open(inputFile, "a", encoding="latin-1") as f:
        f.write(offset)

    # decoding yenc icmp data to an output file

    outputFile = sys.argv[3]

    yenc.decode(inputFile, outputFile)

Step 5:

Executing the script by giving it the following arguments:

• pcap file name
• input file to store the yenc encoded data
• output file to decode the yenc encoded data

When running the script on the first pcap file f101.pcap, I found something that might be interested from the decode operation.

Step 6

I have copied and inserted this data on CyberChef then found that this is a base64 encoding, after decoding it we observe the output result.

We still need to perform another operation in order to get the flag. So let’s get the md5 hash of the “flag” word.

finally! the flag is : flag{327a6c4304ad5938eaf0efb6cc3e53dc}
